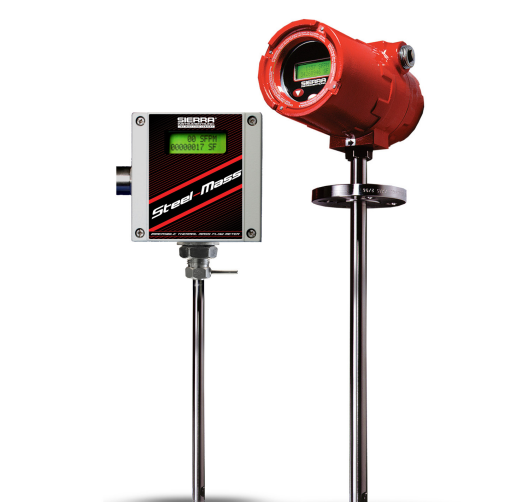

SteelMass 640S
- Accuracy: +/- 1% of reading plus +/- 0.5% of full scale
- Repeatability of +/- 0.2% of full scale
- Flow range to 20,000 sfpm (100 smps)
- Turndown: 100:1
- Measure all inert gases and all non-condensing clean gases
- Flammable gases: methane, propane, hydrogen, digester gas, natural gas
- Corrosive gases compatible with 316L stainless-steel
- 100:1 turndown
- Gas temperature -40°F (-40°C) to 350°F (200°C)
- Ambient temperature -40° F to 120° F (-40° C to 50° C)
- Response time is one second to achieve 63% of final value
- Power supply 18 to 30 VDC (regulated), 625 mA maximum; 100 to 240 VAC, 50/60 Hz, 15 watts maximum
Descripción
- Insertion, totalizing air/gas mass flow meter
- Eliminate drift with patented DrySense™ sensor
- Increase flexibility with low pressure drop, high turndown
- Validate in the field for easy in-situ calibration
- Backed by lifetime sensor warranty
