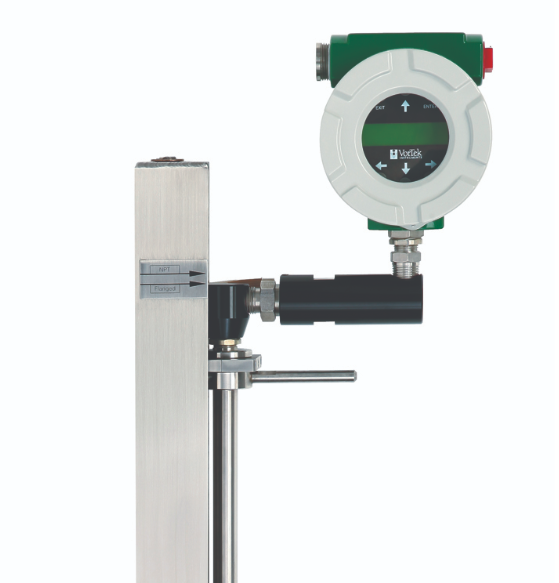

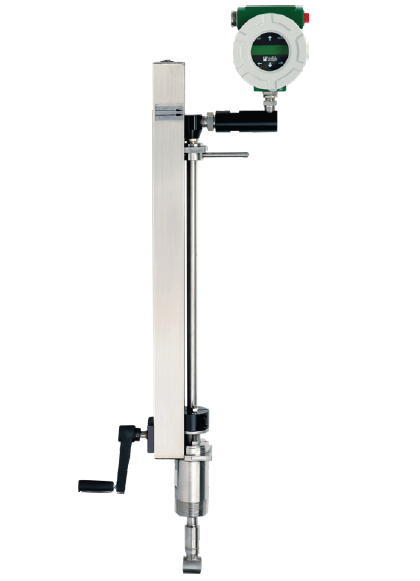

Pro-V™ Model M23

Our Pro-V Model M23-VT insertion vortex shedding flowmeters incorporate a precision 1000 Ohm Platinum RTD temperature sensor that can be used to calculate and output the compensated mass flow of saturated steam.

Descripción

  • Volumetric or mass flow monitoring of most liquids, gases, and steam
  • Multivariable meter delivers mass flow, temperature, pressure, and density readings from a single installed device and reduces initial cost, installation cost and cost of ownership over the lifetime of the instrument
  • Compensated mass flow reading of liquids, gases, and steam
  • Energy monitoring ability to compute and output energy use
  • Easy to install and commission – Hot tappable, process shut down not required for installation
  • Highly reliable – no moving parts, no fluid to sensor contact
  • High accuracy with wide rangeability up to 100:1
  • Handles temperatures up to 750 deg F
  • Handles pressures up to 1500 psig
  • Insertion style mounting permits installation in any pipe 2 inches and greater
  • Field configurable ranges, outputs and displays
  • Remote electronics option available for use in harsh environments or locations with limited access
  • 4-20mZ loop-powered design saves on energy costs
  • HART protocol communications (standard)
  • Modbus communications available
  • FM, FMC, ATEX, and IECEx Approved
